EigenDA Data Structures

BlobKey (Blob Header Hash)​

The blobKey (also called blob_header_hash or blobHeaderHash) is the main identifier used throughout EigenDA. It's a 32-byte value that uniquely identifies each blob dispersal, and you'll use it when querying dispersal status, retrieving blobs, and linking blobs to their certificates.

Common Use Cases​

Direct dispersal: When you call DisperseBlob, the disperser returns a blob key. You use this to poll GetBlobStatus until dispersal completes, then retrieve the blob via the Relay API or validators.

Proxy dispersal (most common for rollups): When using the EigenDA proxy, your rollup receives a DA commitment after dispersal. To retrieve the blob data later, you need to:

  1. Deserialize the BlobCertificate from the commitment
  2. Extract the BlobHeader from the certificate
  3. Compute the blob key by hashing the header (see below)
  4. Use this blob key to call GetBlob on relays or GetChunks on validators

How the BlobKey is Computed​

The blob key is the keccak256 hash of the ABI-encoded BlobHeader. The hashing uses a nested structure: first it hashes the blob's content and dispersal requirements (version, quorums, and commitment), then combines that with the payment metadata hash. This means the same blob content dispersed with different payment terms gets a different blob key each time.

The disperser enforces uniqueness - if you try to disperse a blob with a previously used blob key, the request will be rejected.

The structure of the hash computation is:

blobKey = keccak256(
    abi.encode(
        keccak256(abi.encode(blobHeader.version, blobHeader.quorumNumbers, blobHeader.commitment)),
        blobHeader.paymentHeaderHash
    )
)

Note: This Solidity notation shows the structure of the hash. In practice, you'll typically use SDK functions to compute the blob key - see ComputeBlobKey() in Go or hashBlobHeaderV2() in Solidity for onchain verification.

A few things to note:

  • paymentHeaderHash is itself a keccak256 hash of the PaymentHeader structure. Hashing payment metadata separately keeps on-chain verification efficient.
  • quorumNumbers are sorted in ascending order before hashing. This ensures you get the same hash regardless of what order you specify the quorums.

Who Computes It​

The disperser computes the blob key and returns it in the DisperseBlobReply. You can also compute it yourself for verification - in fact, clients should verify the returned blob key by recomputing it from the BlobHeader they sent. The Go client demonstrates this in verifyReceivedBlobKey().

For the proxy flow mentioned above, you'll compute the blob key yourself from the certificate included in the DA commitment.

Example​

Here's a concrete example. Say you're dispersing a blob with:

  • version: 0x0001
  • quorumNumbers: [0, 1] (sorted)
  • commitment: The cryptographic commitment to your blob data (G1 point and G2 length commitment)
  • paymentHeaderHash: 0x1234... (the 32-byte hash of your PaymentHeader)

Computing the blob key happens in two steps:

First, hash the core dispersal parameters:

innerHash = keccak256(abi.encode(version, quorumNumbers, commitment))

Then combine that with the payment hash:

blobKey = keccak256(abi.encode(innerHash, paymentHeaderHash))

You can then use this blob key to query dispersal status with GetBlobStatus, retrieve chunks from validators with GetChunks, or fetch the full blob from relays with GetBlob.

How It Relates to Other Structures​

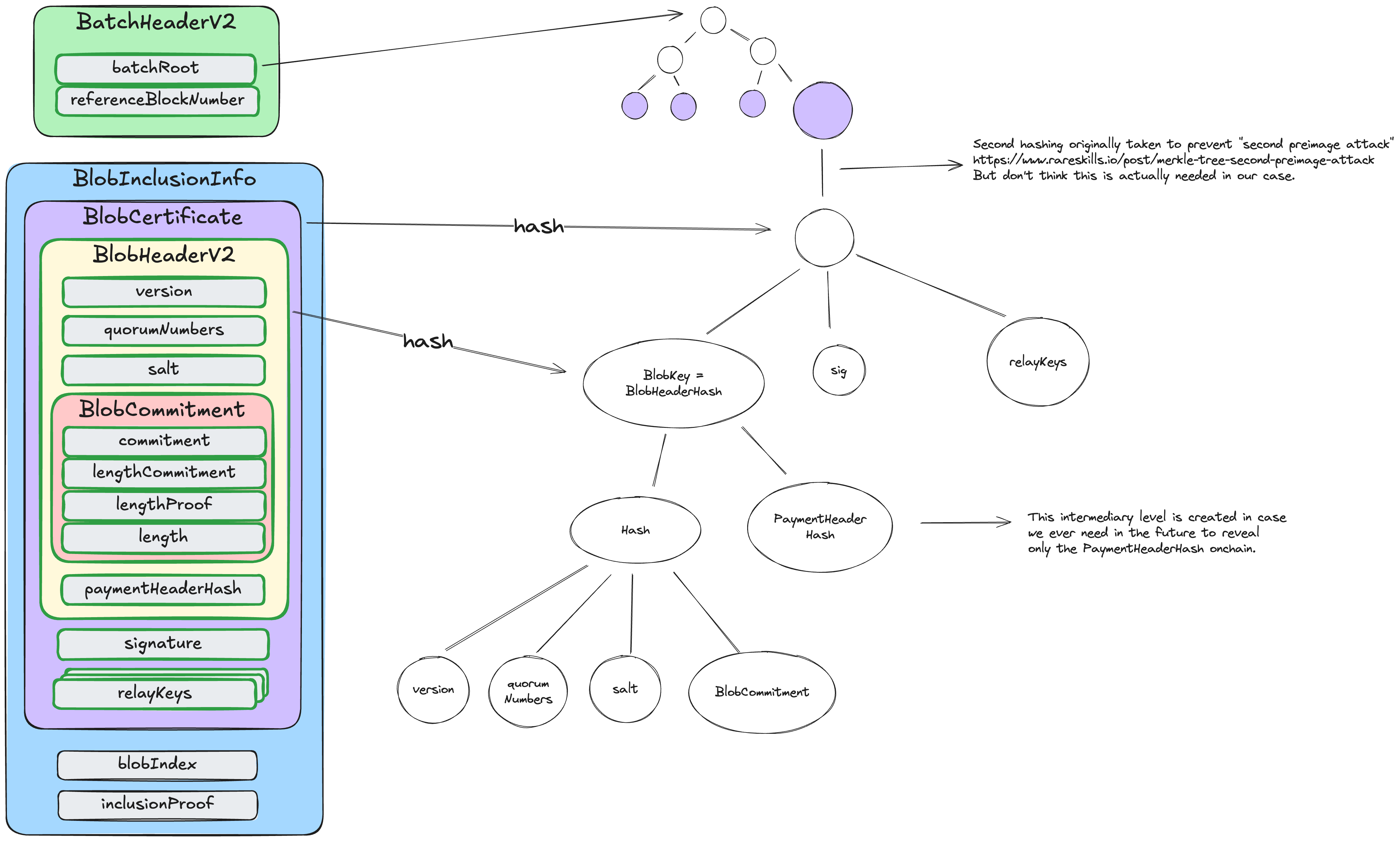

The blob key is the hash of the BlobHeader. A BlobCertificate wraps that header along with signatures and relay keys. When proving that a certificate was included in a batch, you use a BlobInclusionInfo which contains the certificate plus a Merkle proof. The BatchHeader has a batchRoot - that's the root of a Merkle tree where each leaf is the hash of a BlobCertificate.

EigenDA V2 Batch Hashing Structure

BlobHeader​

The BlobHeader has the metadata for a blob dispersal - version, quorum numbers, blob commitment, and payment info. You submit it alongside the blob data in your DisperseBlob request.

See the protobuf definition for field details.

BlobCertificate​

A BlobCertificate packages up a BlobHeader with signatures and relay keys. You'll find it in the blob status reply - it has everything you need to verify blob availability and retrieve the data.

See the protobuf definition for field details.
